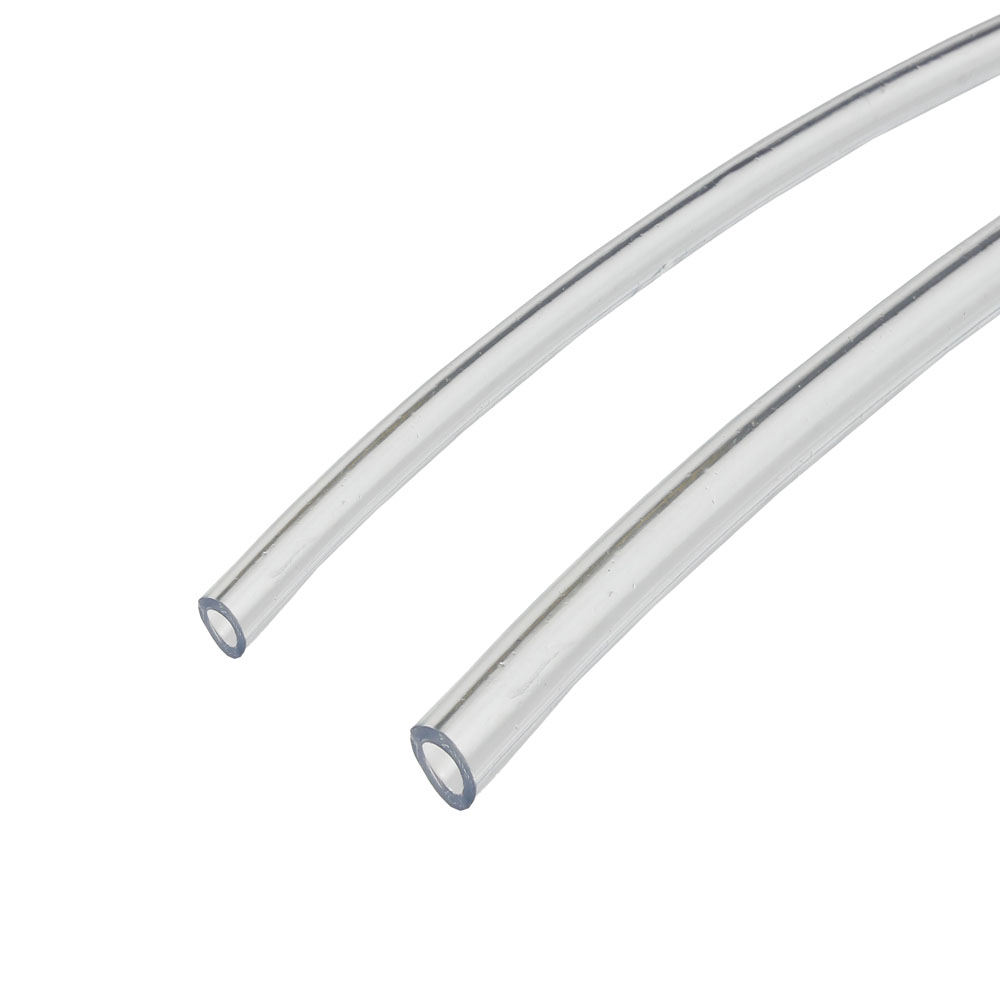

Soft PVC Tube
Soft PVC tubing is produced with superior and environmentally friendly polyvinyl colloidal particle, after drying,extruded to tubing when heated up and liquated, then packing in rolls after cooling.
Features:
-
Material: polyvinyl chloride, called PVC;
-
Working temperature: -30~+105 ºC;
-
Hardness:45~60P;
-
Flexible, Soft, Flame retardant;
-
Voltage Rating:300V & 600V;
-
Color: Black, Clear, Red, Blue, Green, Yellow etc.
Consultation hotline：
0755-23426156
Details
Technical Data:
|
Property |
Typical Performance |
|
Yield Strength |
≥10.4MPa |
|
Breakage Elongation (%) |
≥100% |
|
Voltage |
≥300V |
|
Flexibility |
Outstanding |
|
Flame resistance |
VW-1 |
Dimensions:
|
I.D.(mm) |
Wall Thickness(mm) |
Standard Package (M/Roll) |
|
|
300V |
600V |
||
|
0.80±0.1 |
0.25±0.05 |
0.40±0.05 |
500 |
|
1.0±0.1 |
0.30±0.05 |
0.40±0.05 |
500 |
|
1.5±0.1 |
0.33±0.05 |
0.45±0.05 |
400 |
|
2.0±0.2 |
0.33±0.05 |
0.50±0.05 |
400 |
|
2.5±0.2 |
0.35±0.05 |
0.50±0.05 |
300 |
|
3.0±0.2 |
0.40±0.05 |
0.50±0.05 |
300 |
|
3.5±0.2 |
0.40±0.05 |
0.50±0.05 |
300 |
|
4.0±0.2 |
0.45±0.05 |
0.55±0.05 |
300 |
|
4.5±0.3 |
0.45±0.05 |
0.55±0.05 |
300 |
|
5.0±0.3 |
0.45±0.05 |
0.55±0.05 |
300 |
|
6.0±0.3 |
0.45±0.05 |
0.55±0.05 |
300 |
|
7.0±0.3 |
0.45±0.05 |
0.55±0.05 |
150 |
|
8.0±0.35 |
0.45±0.05 |
0.55±0.05 |
150 |
|
9.0±0.35 |
0.50±0.05 |
0.60±0.05 |
150 |
|
10.0±0.35 |
0.55±0.10 |
0.65±0.10 |
150 |
|
11.0±0.40 |
0.55±0.10 |
0.65±0.10 |
150 |
|
12.0±0.40 |
0.55±0.10 |
0.65±0.10 |
150 |
|
13.0±0.40 |
0.55±0.10 |
0.65±0.10 |
150 |
|
14.0±0.40 |
0.55±0.10 |
0.65±0.10 |
150 |
|
15.0±0.40 |
0.60±0.10 |
0.70±0.10 |
50 |
|
16.0±0.40 |
0.60±0.10 |
0.70±0.10 |
50 |
|
17.0±0.40 |
0.60±0.10 |
0.70±0.10 |
50 |
|
18.0±0.40 |
0.60±0.10 |
0.70±0.10 |
50 |
|
19.0±0.40 |
0.65±0.10 |
0.75±0.10 |
50 |
|
20.0±0.50 |
0.65±0.10 |
0.75±0.10 |
50 |
|
21.0±0.50 |
0.65±0.10 |
0.75±0.10 |
50 |
|
22.0±0.50 |
0.70±0.10 |
0.80±0.10 |
50 |
|
23.0±0.50 |
0.70±0.10 |
0.80±0.10 |
50 |
|
24.0±0.50 |
0.75±0.10 |
0.85±0.10 |
50 |
|
25.0±0.50 |
0.75±0.10 |
0.85±0.10 |
50 |
|
26.0±0.50 |
0.85±0.10 |
0.85±0.10 |
50 |
